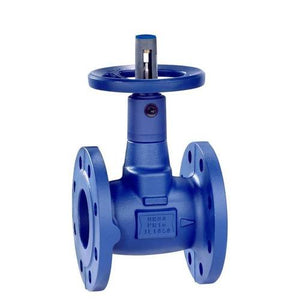

BOA-Compact Valve DN32, PN 6 with flanges, KSB # 48874915

Soft-sealing flanged stop valve,
single-piece body, face-to-face dimension EN 558/14.
Globe valve with oblique seat hydraulics
with non-rising handwheel,
throttling plug, position indicator,
locking device, protected
internal stroke limit and
insulation cap with dew point barrier.
Compact throttling plug fully EPDM-coated
as soft-sealing through-flow and
back-sealing.
Spindle sealing with EPDM profile ring,
maintenance-free.
Non-rotating spindle with protected,
external thread.
With blue external coating. Fully insulatable
according to HeizAnlV.
Designed, manufactured, tested and
marked according to European
Pressure Equipment Directive 2014/68/EU (PED).
Body: EN-GJL-250
Spindle: 1.4021
Paint color: blue RAL 5002
Handwheel cap: without
min. medium temperature: -20 oC
max. medium temperature: 120 oC
Nominal pressure: PN 6
Nominal diameter: DN 32
Weight: 3.8 kg
Manufacturer: KSB
Series: BOA-Compact
Article number: 48874915
EAN/GTIN: 4031932059039
Material price group: A1
