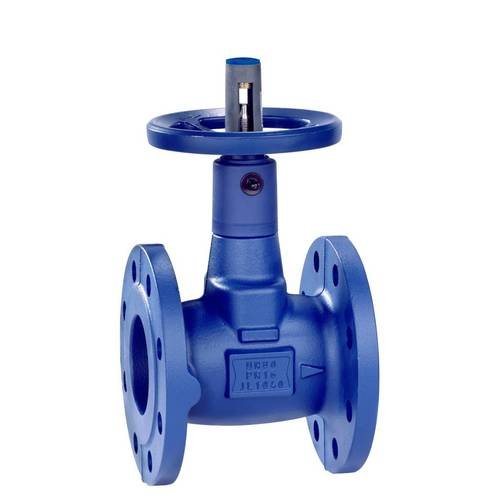

BOA-Compact Valve DN125, PN 16 with flanges, KSB # 48874932

Soft-seated flanged stop valve,
single-piece body, face-to-face dimension EN 558/14.
Globe valve with oblique seat hydraulics
with non-rising handwheel,
throttling cone, position indicator,
locking device, protected
internal travel limitation and
insulation cap with dew point barrier.
Compact throttling cone completely EPDM-encapsulated
as soft-seated through-flow and
back sealing.
Spindle sealing with EPDM profile ring,
maintenance-free.
Non-rotating spindle with protected,
external thread.
With blue exterior paint. Fully insulatable
according to HeizAnlV (German Heating System Ordinance).
Designed, manufactured, tested and
marked according to European
Pressure Equipment Directive 2014/68/EU (PED).
Body: EN-GJL-250
Spindle: 1.4021
Paint color: blue RAL 5002
Handwheel cap: without
min. medium temperature: -20 oC
max. medium temperature: 120 oC
Nominal pressure: PN 16
Nominal diameter: DN 125
Weight: 26.5 kg
Manufacturer: KSB
Series: BOA-Compact
Article number: 48874932
EAN/GTIN: 4031932059213
Material price group: A1
