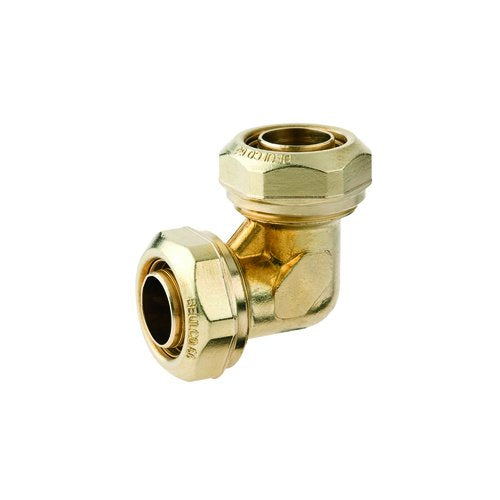

BEUL 90-degree angle coupling, 40 x 4.3 mm # 66301

90° Elbow coupling for plastic pipe dimension 40x4.3mm. The connector. BEULCO compression fitting with fixed support tube.
For pipe types PE80, PE100, PE-Xa, and PE-X.

With this flexible all-rounder, you always choose the right connector for water, gas, heating, and local/district heating applications.
Our connectors are made from materials suitable for drinking water hygiene, making them ideal for use in drinking water systems.


Technical design:
The connector consists of only three components, allowing for quick and easy installation without special tools.
The support tube, firmly connected to the main body, shapes the plastic pipe into a perfectly round form and supports it internally,
meaning it maintains the internal pressure against the brass compression ring of the connector. No pipe deformation occurs even under vacuum.
Thanks to its special contour, the fixed support tube also provides the sealing function.

Sealing:
No long-term damage due to leaky or porous seals.
The sealing function is provided by the support tube, eliminating the need for additional seals. The compression mechanism, proven over decades and
further developed, in conjunction with the fixed support tube, ensures a long-term leak-proof connection.
The sealing function is independent of the condition of the pipe's outer surface. Thus, pipe grooves on the outer surface have no influence on the tightness.

Material:
BEULCO connectors are made of stress-relieved brass. All components in contact with drinking water are made of high-quality UBA-compliant material.
The material is suitable for drinking water hygiene and complies with legal requirements (Drinking Water Ordinance, UBA list, GMS list).
The reliable brass material ensures exceptional durability.
For connectors outside of drinking water applications, dezincification-resistant brass material CW602 is used.
