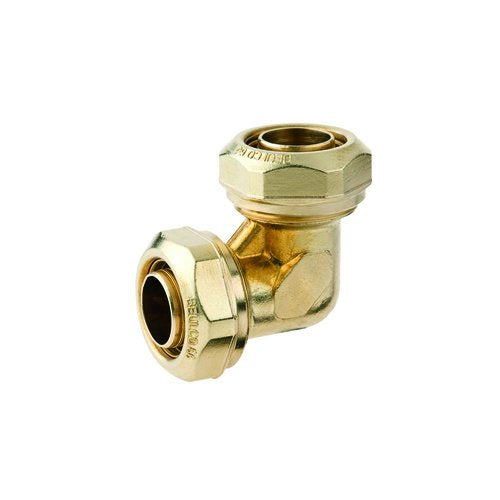

BEUL Angled Coupling 90 Degrees, 32 x 2.9/3mm # 66301

90° Elbow fitting for plastic pipe dimensions 32x2.9/3mm. The connector. BEULCO compression fitting with fixed support tube.
For pipe types PE80, PE100, PE-Xa and PE-X.

With this flexible all-rounder, you always choose the right connector for water, gas, heating and district heating/teleheating applications.
Our connectors are made of material suitable for drinking water hygiene and are therefore ideal for use in drinking water applications.


Technical structure:
The connector consists of only three components, allowing for quick and easy installation without special tools.
The support tube, firmly connected to the main body, brings the plastic pipe into an exactly round shape and supports it internally,
i.e., it maintains the internal pressure against the brass clamping ring of the connector. Even under negative pressure, no pipe deformation occurs.
Due to its special contour, the fixed support tube also provides the sealing function.

Sealing:
No long-term damage due to leaky or porous seals.
The sealing function is provided by the support tube, so no additional seals are necessary. The clamping mechanism, proven over decades and
further developed in conjunction with the fixed support tube, ensures a long-term tight connection.
The sealing function is independent of the condition of the pipe's outer surface. Thus, pipe grooves on the outer surface have no influence on the tightness.

Material:
BEULCO connectors are made of thermally stress-relieved brass. All components in contact with drinking water are made of high-quality UBA-compliant material.
The material is suitable for drinking water hygiene and complies with legal requirements (Drinking Water Ordinance, UBA list, GMS list).
The reliable brass material ensures particular durability.
For connectors outside of drinking water applications, the dezincification-resistant brass material CW602 is used.
