Art. no.
13SB150RV

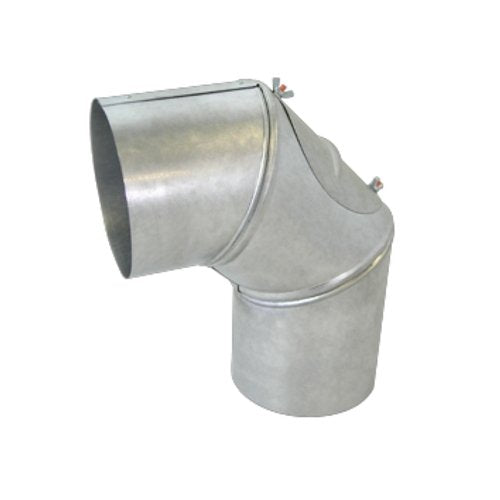

BERTRAMS Segment Arch FAL d: 150mm, adjustable, 3-part, with cleaning door
- High-quality materials
- Fast and secure shipping
- Easy 30-day returns
- Purchase on account: 120-day payment terms
Only a few left
5 pcs. available
Purchase on account120-day payment terms
Expert supportMon-Fri 7:00 AM - 6:00 PM
CONNECTING PIPES SYSTEM FAL
CONNECTORS MADE OF FIRE-ALUMINIZED SHEET STEEL
Bertram's Product Group 13
AREAS OF APPLICATION:
Single-wall connecting pipe/flue pipe made of fire-aluminized sheet steel,
for installation between the heat generator and the chimney system.
PRODUCT FEATURES:
- suitable for all fuels (oil, gas, solid fuels)
- soot-fire resistant
- usable for all standard fireplaces
- dimensions from Ø 60 to Ø 250
- dry operation up to 400° C exhaust gas temperature
- not suitable for wet operation
- only limited corrosion resistance
TECHNICAL DATA:
- cylindrical pipes with one crimped end
- material thickness Ø 60-180 = 0.6 mm, Ø 200-250 = 0.8 mm
- tested according to DIN EN 1856-2 and DIN 1298
- fire-aluminized pipes are only conditionally suitable for installation
in visible areas.
- Minor surface scratches do not constitute a defect!
ASSEMBLY AND EXECUTION:
- quick assembly due to lightweight material, without clamps
- slim design due to crimped plug end (no socket)
- easy adaptation to existing piping by, for example: rotatable bends
CE Certificate No.: 0432-CPD-21 7922
CE Classifications according to DIN EN 1856-2: T400 - N1 - D - Vm - L05060 - G400
CONNECTORS MADE OF FIRE-ALUMINIZED SHEET STEEL
Bertram's Product Group 13
AREAS OF APPLICATION:
Single-wall connecting pipe/flue pipe made of fire-aluminized sheet steel,
for installation between the heat generator and the chimney system.
PRODUCT FEATURES:
- suitable for all fuels (oil, gas, solid fuels)
- soot-fire resistant
- usable for all standard fireplaces
- dimensions from Ø 60 to Ø 250
- dry operation up to 400° C exhaust gas temperature
- not suitable for wet operation
- only limited corrosion resistance
TECHNICAL DATA:
- cylindrical pipes with one crimped end
- material thickness Ø 60-180 = 0.6 mm, Ø 200-250 = 0.8 mm
- tested according to DIN EN 1856-2 and DIN 1298
- fire-aluminized pipes are only conditionally suitable for installation
in visible areas.
- Minor surface scratches do not constitute a defect!
ASSEMBLY AND EXECUTION:
- quick assembly due to lightweight material, without clamps
- slim design due to crimped plug end (no socket)
- easy adaptation to existing piping by, for example: rotatable bends
CE Certificate No.: 0432-CPD-21 7922
CE Classifications according to DIN EN 1856-2: T400 - N1 - D - Vm - L05060 - G400
