BEMM BHK Mido Arc BMA-H1806x074x0740 Central Connection 50 mm, white 9016

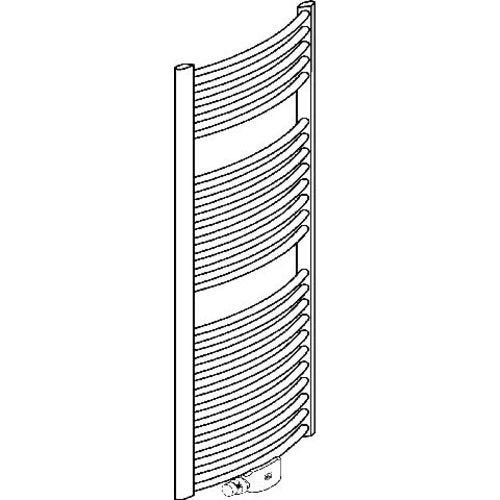

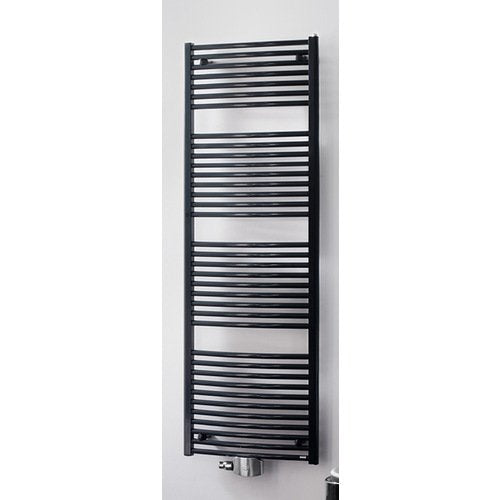

BEMM Mido Arc, BMA series bathroom radiator for central heating (and electric) and for heating towels and textiles. Horizontal round tubes 23 mm diameter, joined to vertical, all-round smooth semi-oval tubes 30 x 40 mm using a special process without visible weld seams. The round tubes are bent so that the radiator bows forward in an arc with 1 - 3 towel hanging openings. With M-connection DN 15 (1/2) x 50 mm centrally at the bottom and 2 connections DN 15 (1/2) from below, on the right and left outer sides, as well as 1 vent connection DN 15 (1/2) from top right. Surface environmentally friendly, emission-free powder coated according to DIN 55900 and baked at approx. 180°C. Standard color white 9016, optionally in other colors according to the BEMM color palette, optionally galvanically zinc-plated under the powder coating. Standard accessories: Vent plug DN 15 (1/2) in nickel-plated version with special seal, 4 easy-to-install, depth-adjustable, front-fixable fastenings (AK 3-4 according to VDI 6036 depending on size), including 4 hexagonal wood screws with wall plugs. Complies with the guidelines of the statutory accident insurers (GUV), heat outputs according to DIN EN 442-2, measured by a recognized testing institute. CE Declaration of Performance according to EU-BauPVo Heating medium water max. permissible operating temperature 100°C max. permissible operating overpressure 10 bar Manufacturer: BEMM GmbH, 31180 Emmerke near Hildesheim
