Art. no.
0020005006020

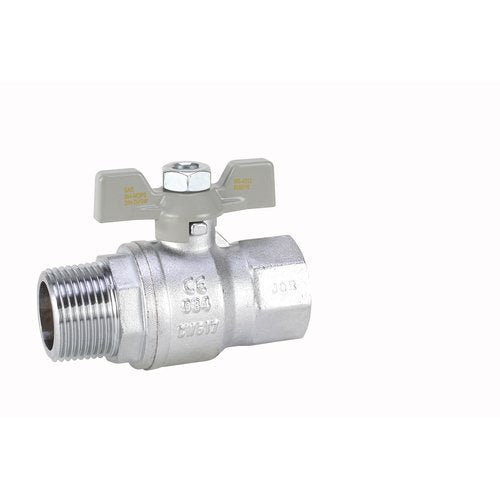

BEE Ball Valve 3/4
- High-quality materials
- Fast and secure shipping
- Easy 30-day returns
- Purchase on account: 120-day payment terms
Only a few left
2 pcs. available
Purchase on account120-day payment terms
Expert supportMon-Fri 7:00 AM - 6:00 PM
Bee Ball Valve Series 984.3
Brass ball valve with female thread for
compressed air, potable water, oil,
solvents, gas, DVGW approval for
gas up to MOP 5, DVGW approval for
potable water PN10, brass housing,
chrome-plated, full bore according to DIN EN
1983, painted aluminum wing handle,
silicone-free, maintenance-free
Technical Data
Type: 984.3
Version: Female/Male thread according to ISO 7/1
DN: 20
PN: 40 bar, for gas MOP 5
for potable water PN 10
Material: Brass CW617N chrome-plated
Ball: Brass CW617N chrome-plated
Seal: Teflon
Spindle: Brass, blow-out proof,
Shaft seals: NBR Perbunan + Viton
Temperature: gen. -20°C to +170°C,
for gas -20°C to +60°C
for potable water +65°C continuously
+95°C for short periods
Approvals: Gas according to DIN EN 331
GAD 90/396/EEC
Potable water according to DIN EN
13828 and W570-1
PED 97/23/EC Cat.3B+C1
Brand: G.Bee
Order number: 984.3-3/4
Brass ball valve with female thread for
compressed air, potable water, oil,
solvents, gas, DVGW approval for
gas up to MOP 5, DVGW approval for
potable water PN10, brass housing,
chrome-plated, full bore according to DIN EN
1983, painted aluminum wing handle,
silicone-free, maintenance-free
Technical Data
Type: 984.3
Version: Female/Male thread according to ISO 7/1
DN: 20
PN: 40 bar, for gas MOP 5
for potable water PN 10
Material: Brass CW617N chrome-plated
Ball: Brass CW617N chrome-plated
Seal: Teflon
Spindle: Brass, blow-out proof,
Shaft seals: NBR Perbunan + Viton
Temperature: gen. -20°C to +170°C,
for gas -20°C to +60°C
for potable water +65°C continuously
+95°C for short periods
Approvals: Gas according to DIN EN 331
GAD 90/396/EEC
Potable water according to DIN EN
13828 and W570-1
PED 97/23/EC Cat.3B+C1
Brand: G.Bee
Order number: 984.3-3/4
