Art. no.
0020005006025
BEE Ball Valve 1
- High-quality materials
- Fast and secure shipping
- Easy 30-day returns
- Purchase on account: 120-day payment terms
In stock
16 pcs. available
Purchase on account120-day payment terms
Expert supportMon-Fri 7:00 AM - 6:00 PM

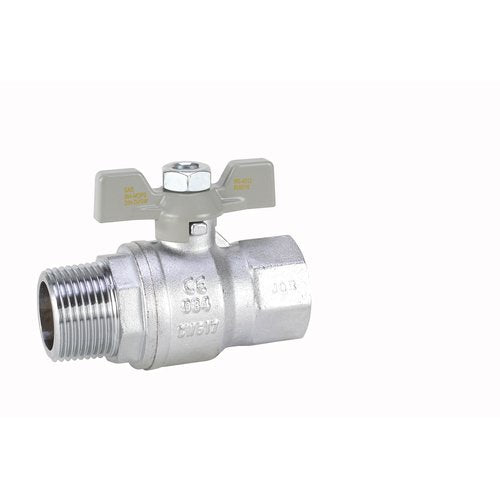

Bee Ball Valve Series 984.3
Brass ball valve with threaded ends for
compressed air, drinking water, oil,
solvents, gas, DVGW approval for
gas up to MOP 5, DVGW approval for
drinking water PN10, brass body,
chrome-plated, full bore according to DIN EN
1983, painted aluminum lever handle,
silicone-free, maintenance-free
Technical Data
Type: 984.3
Design: IG/AG according to ISO 7/1
DN: 25
PN: 40 bar, for gas MOP 5
for drinking water PN 10
Material: Brass CW617N chrome-plated
Ball: Brass CW617N chrome-plated
Seal: Teflon
Spindle: Brass, blow-out proof,
Shaft seals: NBR Perbunan + Viton
Temperature: general -20°C to +170°C,
for gas -20°C to +60°C
for drinking water +65°C continuous
+95°C short-term
Approvals: Gas according to DIN EN 331
GAD 90/396/EEC
Drinking water according to DIN EN
13828 and W570-1
PED 97/23/EC Cat.3B+C1
Manufacturer: G.Bee
Order number: 984.3-1
