Basic Press Seal for ribbed pipes, watertight, for 175mm OD: 200mm V2A
289,59 €

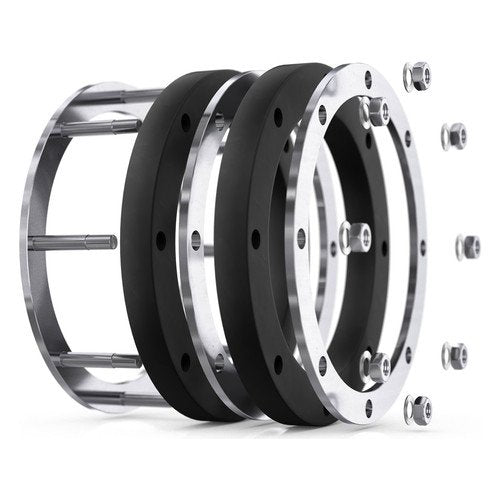

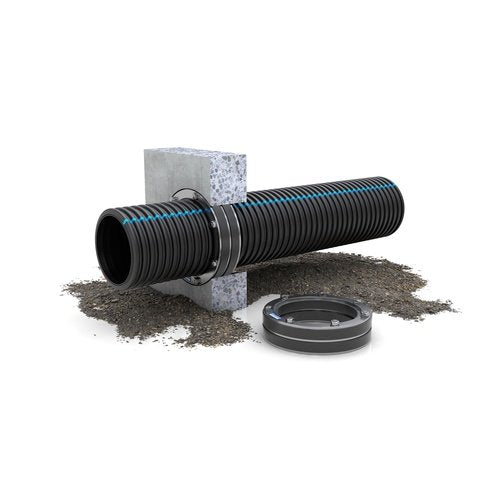

Compression seal for routing ribbed or corrugated
media pipes (especially suitable for e.g. district heating pipes);
for installation in core drillings or sleeves;
against pressurized and non-pressurized water; soft seal
and central pressure plate for even pressure distribution for
corrugated media pipes prevent damage and leaks;
welded bolts for optimal stability and
corrosion protection; UV-resistant, suitable for direct burial and concealed installation;
Required core drilling: 200mm diameter
Seal thickness: 40mm
Pressure density: 1bar
Tightening torque: 7.0 Nm
Weight: 2.8kg
Material: EPDM / V2A
Test/Approval: MPA
media pipes (especially suitable for e.g. district heating pipes);
for installation in core drillings or sleeves;
against pressurized and non-pressurized water; soft seal
and central pressure plate for even pressure distribution for
corrugated media pipes prevent damage and leaks;
welded bolts for optimal stability and
corrosion protection; UV-resistant, suitable for direct burial and concealed installation;
Required core drilling: 200mm diameter
Seal thickness: 40mm
Pressure density: 1bar
Tightening torque: 7.0 Nm
Weight: 2.8kg
Material: EPDM / V2A
Test/Approval: MPA
