Bathtub foot WF 2000 A15 for acrylic tubs up to 2000x1000mm H: 120-195mm

sanibel bathtub foot WF 2000 for
Acrylic bathtubs up to 200x100cm H=12-19.5cm
Bathtub shapes:
Rectangle, Oval and Hexagonal

Bathtub size:
up to 200x100 cm

Height adjustment range:
12 to 19.5 cm

Features:
- Sound insulation certificate for acrylic
shower trays, according to DIN 4109, VDI 4100
and SIA 181, in conjunction with sanibel
mounting accessories
- 2 galvanized steel profiles for screwing
under the bathtub base
- 4 height-adjustable and movable
adjustable feet, with sound-decoupled
quick-release fastening and swivel &
pivot bearings, pre-assembled for immediate mounting on
the steel rail
- Swivel & pivot bearings guarantee full
contact of the adjustable feet even
on uneven floors and with bathtub
drainage slopes

Features sanibel mounting accessories WRL-2:
- 2 bathtub rim strips for sound-decoupled
bathtub rim support on the wall
- 1 wall anchor with sound-decoupled
support and clamping of the bathtub rim
on the wall.
- 1 click anchor with sound-decoupled
clamping of the bathtub rim
on the wall.
- Fastening of the click anchor by
clicking it onto the bathtub rim strip,
aligning and tightening with one
hand.

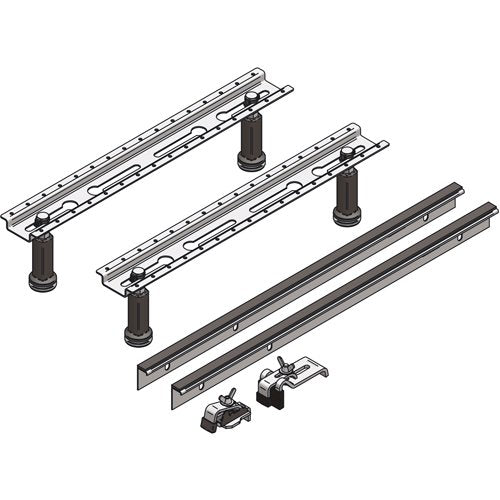

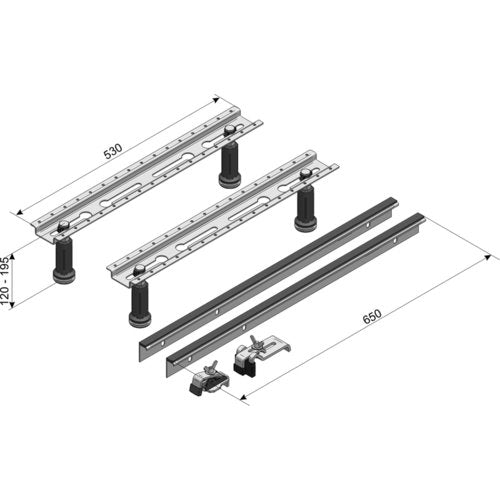

Scope of delivery:
- 2x galvanized steel profiles L = 53 cm
- 4x adjustable feet with quick-release fastening
- 2x bathtub rim strips L= 65 cm
- 1x wall anchor with support and clamping
- 1x click anchor
- Mounting material
- Detailed assembly instructions
