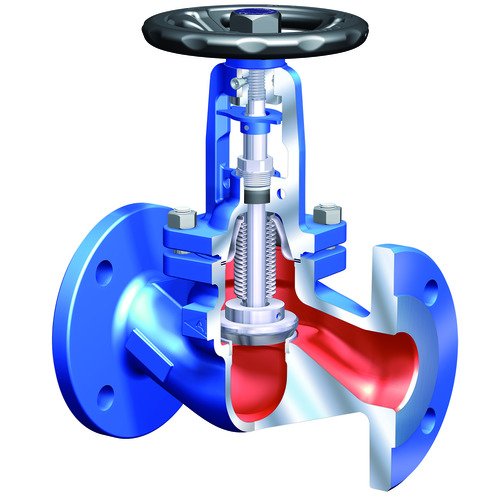

ARI Flanged Stop Valve FABA-Plus 22046 DN50, PN16, EN-JS1049, Edge Seating Cone

Maintenance-free metallic-sealing
globe valve with bellows seal
in straight-through design with
flanges acc. to EN 558, FTF-1,
housing made of cast iron EN-JS 1049
(short designation: EN-GJS-400-18,
formerly GGG-40.3) with primer, double-
walled stainless steel bellows made of 1.4571,
internal parts 1.4021+QT, fine-threaded spindle
with external and rolled
thread, flat funnel grease nipple,
recessed locking device,
heat-dissipating bonnet
optimized for attachments,
safety stuffing box,
detachable anti-rotation device with
indicator,
non-rising metallic handwheel
with cataphoresis coating,
limit switch retrofittable during operation,
fully insulatable according to
Building Energy Act (GEG),
TA-Luft TÜV test no. 973-10183778,
CE certification according to Pressure Equipment Directive
(from DN 32).
Nominal pressure: PN 16
Nominal size: DN50
Plug type: Edge seat (throttling function)
max. temp.: -10 to +350 degrees C
Weight: 11 kg
Price group: G32
Article number: 220460050011
