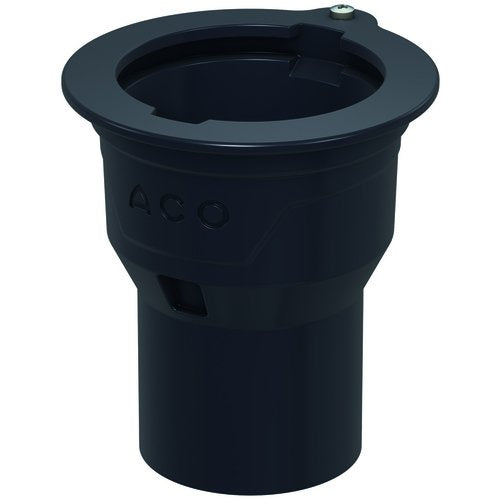

ACO drain body DN100, holder. 90 degrees with coating, # 5569.10.20

ACO floor drain Passavant DN 100made of cast iron, paintedoutlet inclination 90 degrees tested according to DIN EN 1253without trapbuilding material class A1, non-combustible natural, recyclable materialtested, integrated sound insulation according to VDI 4100:2012, SST III = 22dB(A)with retaining flange and earthing connectionwith seepage openingswith construction phase protection covertested fire protection from below and above suitable for ceiling thicknesses from 100 mm in conjunction with installation set Fit-in (core drill diameter 160 mm)in conjunction with fire protection set 5570.10.35drainage capacity 2.0 l/sweight 4.6 kgrecess dimensions 170 x 200 mm
