Art. no.
003Z2144
Shut-off and control valve USV-Set DN32 IG, PN 16, Danfoss # 003Z2144
- High-quality materials
- Fast and secure shipping
- Easy 30-day returns
- Purchase on account: 120-day payment terms
Regular price
150,36 €
Unavailable
Only a few left
3 pcs. available
Purchase on account120-day payment terms
Expert supportMon-Fri 7:00 AM - 6:00 PM
Shut-off and control valve USV-Set DN32 IG, PN 16, Danfoss # 003Z2144
150,36 €

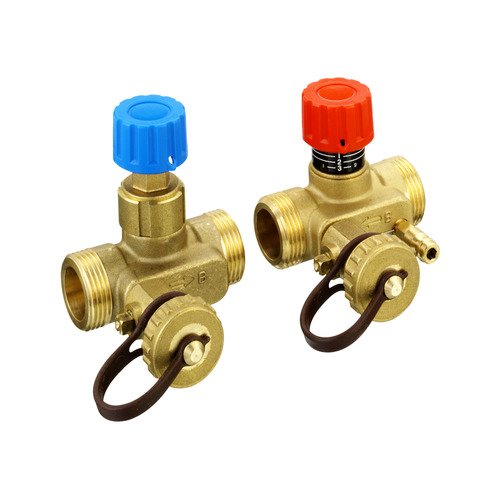

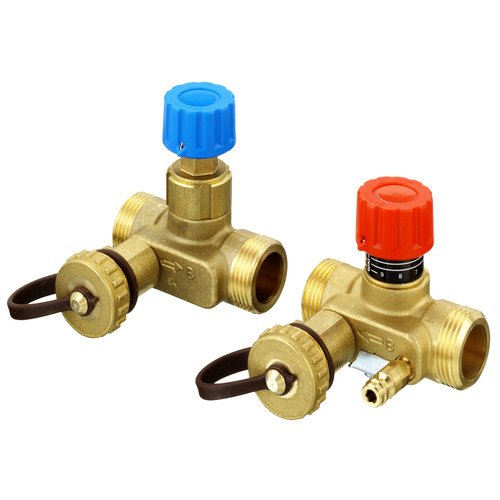

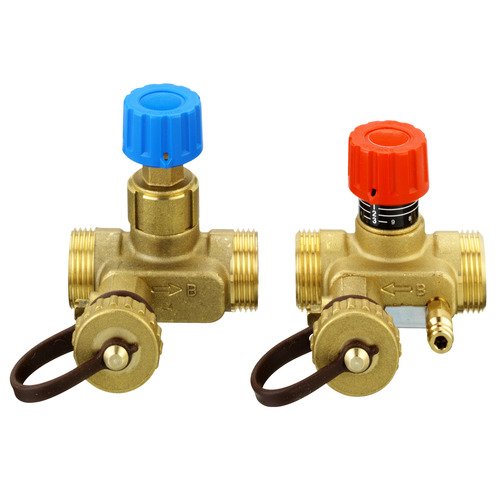

Danfoss Branch Valve Set USV
Consisting of:
Branch control and measuring valve USV-I,
upgradeable branch shut-off valve USV-M,
incl. 2 drain cocks and 1 measuring
nipple incl. fixing bracket.
Offers the possibility of branch shut-off,
branch control, flow measurement, as well
as filling and draining.
Can be upgraded to a differential pressure
regulator under full system pressure without
changing the kv values.
Casing made of brass MS 58
Pressure rating: PN 16
Max. water temperature: 120 C
Max. differential pressure: 0.8 bar
Connection: Rp 1 1/4
KVS value: 6.3 m3/h
Make: Danfoss
Type: USV-Set 32
Order no.: 003Z2144
Consisting of:
Branch control and measuring valve USV-I,
upgradeable branch shut-off valve USV-M,
incl. 2 drain cocks and 1 measuring
nipple incl. fixing bracket.
Offers the possibility of branch shut-off,
branch control, flow measurement, as well
as filling and draining.
Can be upgraded to a differential pressure
regulator under full system pressure without
changing the kv values.
Casing made of brass MS 58
Pressure rating: PN 16
Max. water temperature: 120 C
Max. differential pressure: 0.8 bar
Connection: Rp 1 1/4
KVS value: 6.3 m3/h
Make: Danfoss
Type: USV-Set 32
Order no.: 003Z2144
